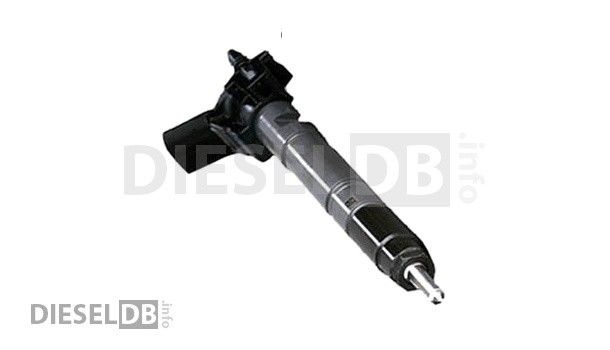

Bosch 0445118024 — CRI3-27 NC Common Rail Injector for Ford 6.7L Power Stroke
Bosch Part Number Reference
| Field | Detail |
|---|---|
| Bosch Part Number | 0 445 118 024 / 0445118024 |
| Short Number | 445 118 024 |
| Type Formula | CRI3-27 NC |
| Injector Series | CRI3 — Third-generation Common Rail Injector (solenoid) |
| Replacement / Supersession | Confirm with Bosch parts system — no universal successor confirmed at time of publication |
| Condition (new stock) | New / Reconditioned / Exchange — contact DieselDB for current availability |
OEM Cross-Reference Numbers
| Brand | OEM Part Number | Notes |
|---|---|---|
| Ford Motor Company | LC3Q-9K546-AA / LC3Q9K546AA | Primary Ford OEM part number, 2019 model year Power Stroke |
| Ford Motor Company | LC3 Q 9K546 AA | Spaced format as printed on Ford parts documentation |
| Ford / Motorcraft | 8580295 | Ford internal catalogue reference number |
Engine Application
| Engine Code | Configuration | Displacement | Power Output | Torque |
|---|---|---|---|---|
| Ford 6.7L Power Stroke (2019) | V8, compacted graphite iron block, reverse-flow DOHC, turbocharged, common rail direct injection | 6.7 L (406 cu in) | 450 hp (336 kW) | 935 lb-ft (1268 Nm) |
Note: The Ford 6.7L Power Stroke has used several generations of Bosch common rail injectors across its production run. The 0445118024 (LC3Q-9K546-AA) is specific to the 2019 model year update. Earlier variants include the 0445117024 (BC3Q, 2011–2014) and 0445117040/043 (FC3Q, 2015–2019), while the 2020–2023 Power Stroke uses the 0445118027/028 (LC3Q-9K546-AC). These injectors are not interchangeable across generations — always verify the Ford OEM part number and model year before ordering.
Equipment Application
The Bosch 0445118024 is fitted as original equipment in the following 2019 model year Ford Super Duty vehicles equipped with the 6.7L Power Stroke diesel engine.
| Vehicle | Model Year | Engine | Notes |
|---|---|---|---|
| Ford F-250 Super Duty | 2019 | 6.7L Power Stroke V8 | Diesel option; all cab and bed configurations |
| Ford F-350 Super Duty | 2019 | 6.7L Power Stroke V8 | Single and dual rear wheel variants |
| Ford F-450 Super Duty | 2019 | 6.7L Power Stroke V8 | Pickup and chassis cab configurations |
| Ford F-550 Super Duty | 2019 | 6.7L Power Stroke V8 | Chassis cab; used in commercial body conversions |
| Ford F-600 Super Duty | 2019 | 6.7L Power Stroke V8 | Chassis cab; medium-duty commercial applications |
Technical Specifications
| Parameter | Specification |
|---|---|
| Injector Type | Bosch CRI3 — Third-generation Common Rail Injector, solenoid-actuated |
| Type Formula | CRI3-27 NC |
| Maximum Operating Pressure | 2700 bar (39,200 psi) |
| Actuation Method | Solenoid valve with needle control (NC) |
| Fuel Type | Diesel (Ultra-Low Sulphur Diesel — ULSD required) |
| Injectors per Engine | 8 (one per cylinder) |
| IQA Coding Required | Yes — each injector carries an individual IQA code that must be programmed into the PCM on installation |
| Ford OEM Part Number | LC3Q-9K546-AA |
| Ford Catalogue Reference | 8580295 |
| Model Year Application | 2019 Ford Super Duty (F-250, F-350, F-450, F-550, F-600) |
